JWT token creation using DataWeave

Security implementations have been revolutionary through OAuth 2.0, OpenID Connect, SAML, etc. OAuth 2.0 and OpenID connect mostly use JWT as a token format. JWT is a very familiar term for the API fraternity.

There are instances where we need to create a JWT token to authorize our APIs to a service or authorize any client if we are using any custom solutions for authentication/authorization.

Let’s take a deeper look at JWT tokens.

Sample JWT token

ewogICJhbGciOiAiSFMyNTYiLAogICJ0eXAiOiAiSldUIiwKICAia2lkIjogIjEwMSIKfQ.ewogICJpc3MiOiAiR1RBIiwKICAiaWF0IjogMTY1NjQyMTQ0NiwKICAicmVxdWVzdGVkU2NvcGUiOiBbCiAgICAieG90cCIKICBdCn0.l2slJ86T7J3at9UG5esKMi5B9h02WjcpIuMZm_5mxzM

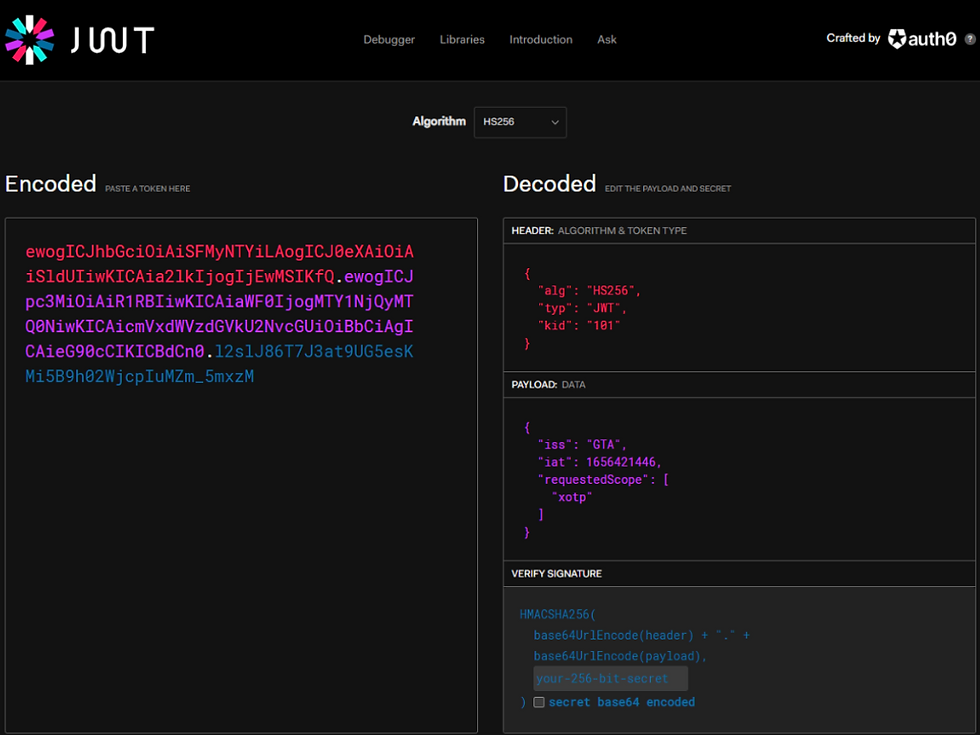

Let’s see the basic structure of this token. (Visit https://jwt.io/#debugger-io)

As you can see in the image, the token is decoded into three parts,

1. Header

ewogICJhbGciOiAiSFMyNTYiLAogICJ0eXAiOiAiSldUIiwKICAia2lkIjogIjEwMSIKfQ

2. Payload

ewogICJpc3MiOiAiR1RBIiwKICAiaWF0IjogMTY1NjQyMTQ0NiwKICAicmVxdWVzdGVkU2NvcGUiOiBbCiAgICAieG90cCIKICBdCn0

3. Signature

l2slJ86T7J3at9UG5esKMi5B9h02WjcpIuMZm_5mxzM

We will see in the following topic how to create this token.

How to create JWT using Java

There are multiple libraries to do this in JAVA: I always try to use the simplest code.

import java.nio.charset.StandardCharsets;
import java.security.InvalidKeyException;
import java.security.NoSuchAlgorithmException;
import java.util.Base64;
import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import org.json.JSONException;
import org.json.JSONObject;

public class JWT {

	public static String encodeString(byte[] bytes) {
		return Base64.getUrlEncoder().withoutPadding().encodeToString(bytes);
	}

	public static String encodeJSON(JSONObject obj) {
		return encodeString(obj.toString().getBytes(StandardCharsets.UTF_8));
	}

	public static String createJWT(String data, String secret) throws NoSuchAlgorithmException {
		try {

			byte[] hash = secret.getBytes(StandardCharsets.UTF_8);
			Mac sha256Hmac = Mac.getInstance("HmacSHA256");
			SecretKeySpec secretKey = new SecretKeySpec(hash, "HmacSHA256");
			sha256Hmac.init(secretKey);

			byte[] signedBytes = sha256Hmac.doFinal(data.getBytes(StandardCharsets.UTF_8));

			return encodeString(signedBytes);
		} catch (InvalidKeyException ex) {
			System.out.print("FAILED to sign");
			return null;
		}
	}

	public static String JWTtoken(String[] args) throws JSONException, NoSuchAlgorithmException {
		String jwtHeader = "{\n  \"alg\": \"HS256\",\n  \"typ\": \"JWT\",\n  \"kid\": \"101\"\n}";
		String jwtPayload = "{\n  \"iss\": \"GTA\",\n  \"iat\": 1656422976,\n  \"requestedScope\": [\n    \"xotp\"\n  ]\n}";
		String secret = "1A3B4A5CE86E0BF3AF6FF575C93438BH";
		String signedData = createJWT(
				encodeJSON(new JSONObject(jwtHeader)) + "." + encodeJSON(new JSONObject(jwtPayload)), secret);
		String jwtToken = encodeJSON(new JSONObject(jwtHeader)) + "." + encodeJSON(new JSONObject(jwtPayload)) + '.'
				+ signedData;
		return jwtToken;

	}

	public static void main(String args[]) {
		try {
			JWTtoken(null);
		} catch (NoSuchAlgorithmException e) {
			e.printStackTrace();
		} catch (JSONException e) {
			e.printStackTrace();
		}
	}

}

The token generated:

eyJraWQiOiIxMDEiLCJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJHVEEiLCJyZXF1ZXN0ZWRTY29wZSI6WyJ4b3RwIl0sImlhdCI6MTY1NjQyMjk3Nn0.3kM0_DUuJCIig2OlyqxqnjODUxRvTA93d9Tgu-ZhOgw

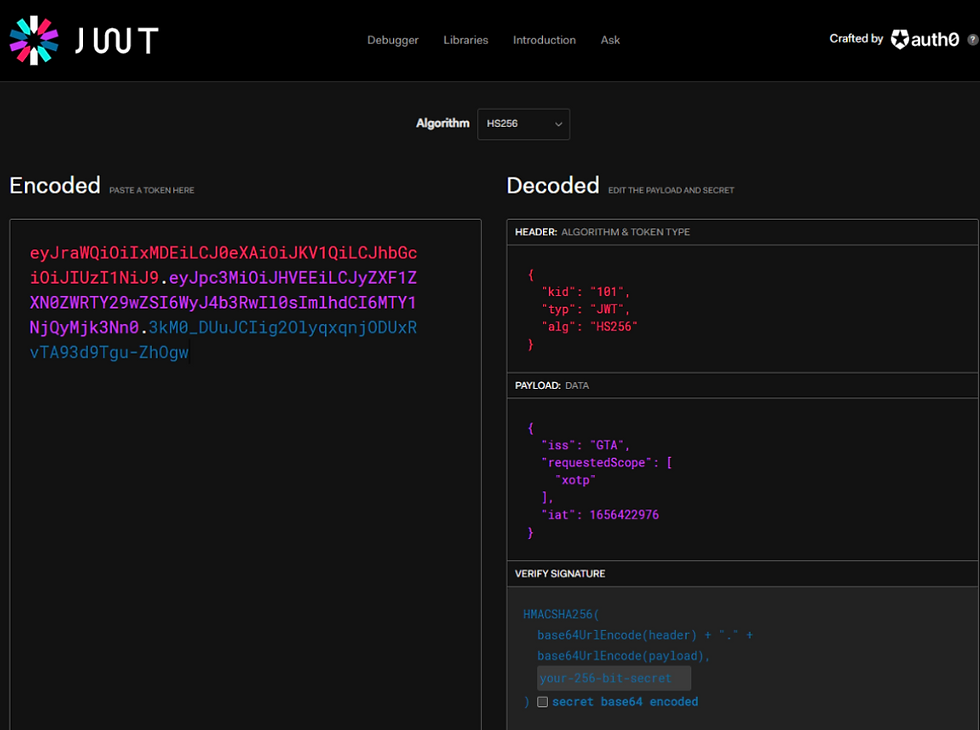

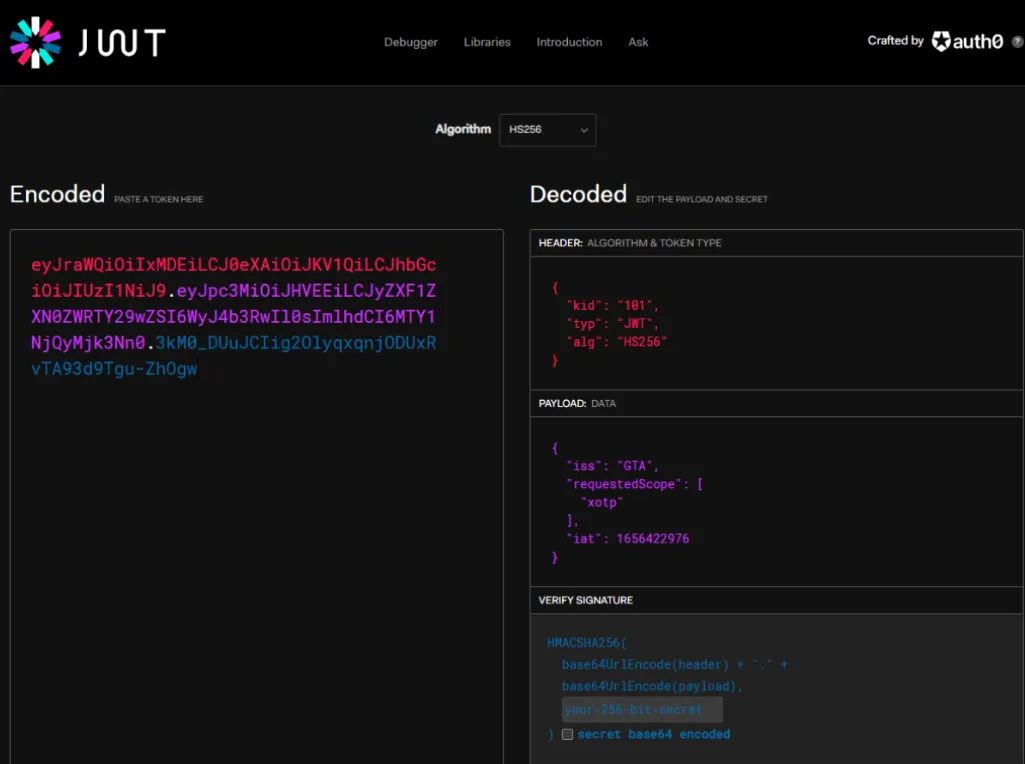

Let’s decode this token.

How to create JWT using DataWeave

JAVA seems to be very technical. Let’s switch to our magical language.

%dw 2.0
//Imports
import * from dw::Crypto
import * from dw::core::Binaries
import * from dw::core::URL

//Variables
var secret = "1A3B4A5CE86E0BF3AF6FF575C93438BH" //256 bit key

var tokenHeader = {
 "alg": "HS256", // The algorithm to sign
 "typ": "JWT", // Type of token
 "kid": "101" // Key Id
}

var tokenPayload = {
 "iss": "GTA", // Issuer of JWT
 "iat": 1656422976, // now() as Number {unit: "seconds"}, // Time in seconds since epoch, hardcoded to match with JAVA code block
 "requestedScope": ["xotp"] // Request scope
}

// Function to encode data into base64
// Note:Web Tokens use Base64Url instead of the typical Base64. They are basically the same except Base64Url are safe to pass in a URL because they use – instead of + and _ instead of / and they omit the = padding characters at the end of the string. You can do string replacement to properly convert the token then call fromBase64.
// To read more on encoding/decoding base64 formats visit - https://docs.mulesoft.com/dataweave/2.4/dw-binaries-functions-tobase64
fun base64encodeURL(data) =
 toBase64(data) replace "/" with ("_") replace "+" with ("-") replace "=" with ""

//Variables
var header = base64encodeURL(write(tokenHeader, "application/json")) // Convert to Stringified JSON
var payload = base64encodeURL(write(tokenPayload, "application/json")) // Convert to Stringified JSON
var signature = base64encodeURL(HMACBinary(secret as Binary, (base64encodeURL(header) ++ "." ++ base64encodeURL(payload)) as Binary, "HmacSHA256"))
output application/json
---
header ++ "." ++ payload ++ "." ++ signature

The token generated:

ewogICJhbGciOiAiSFMyNTYiLAogICJ0eXAiOiAiSldUIiwKICAia2lkIjogIjEwMSIKfQ.ewogICJpc3MiOiAiR1RBIiwKICAiaWF0IjogMTY1NjQyMjk3NiwKICAicmVxdWVzdGVkU2NvcGUiOiBbCiAgICAieG90cCIKICBdCn0._RUefLwi3UBP7jbxE7VHB-t-aMmCNdvFSr7frgW7wNY

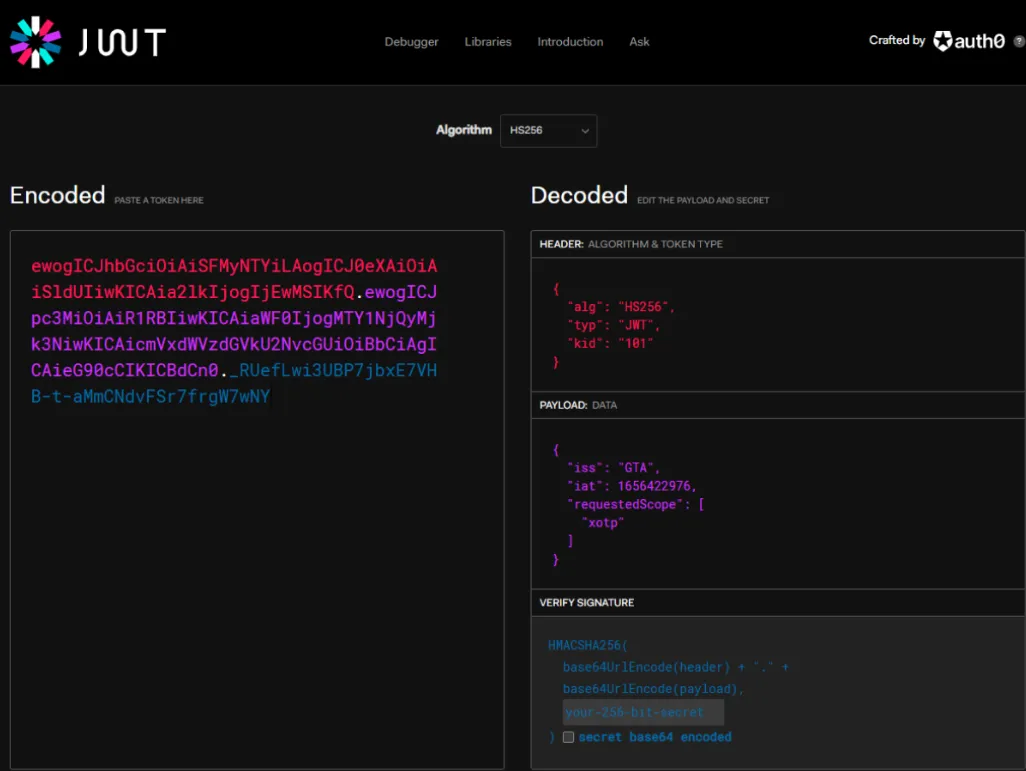

Let’s decode this token:

Voila, you are done. TBH, it’s way more fun to code in DataWeave.

The tokens generated from the JAVA class and DataWeave get decoded to the same data.

Summary

JWT is vital in today’s API world. It’s not enough to just know the code; we need to focus on the security of API from all perspectives.

References

• https://jwt.io/introduction
• https://docs.mulesoft.com/dataweave/2.4/dw-crypto
